WINDSHIELD

-
-

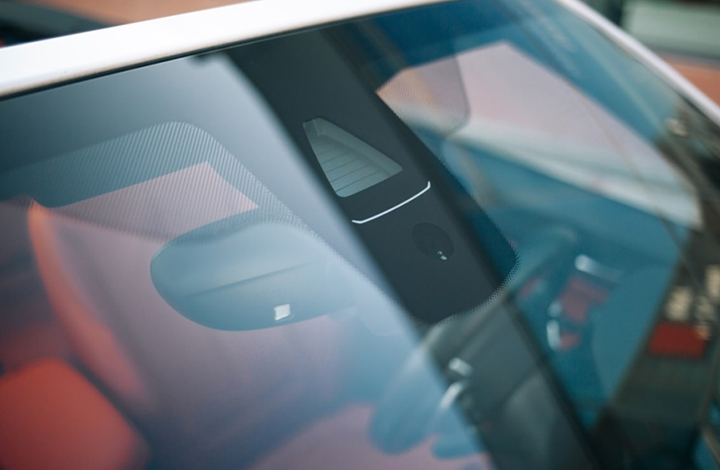

GSUIT Windshield
Scratch resistance
GSUIT Windshield protection coating offers excellent scratch resistance and can withstand common abrasion sources like windshield wipers.
Easy installation
It is easy to install thanks to our unique coating technology compared to other companies
Hydrophobic & easy to clean
Super hydrophobic surface helps to clean your vehicle effortlessly and also remains a clean-car look for longer
Excellent durability
The adhesion of the coating layer is excellent.
It turns out the coating layer is not peeled off by the wiper
GSUIT Windshield Feature
Test Item | A C*** |
B P**** |
C S**** |
G-Suit Windshield |
Test Condition | |
---|---|---|---|---|---|---|
Thickness | 120 | 112 | 87 | 70 | Thickness gauge | |
Coating adhesion | Initial | 30/100 | 100/100 | 100/100 | 100/100 | ASTM D3559 Cross cut Test |
Boiling water | 85/100 | 100/100 | 100/100 | 100/100 | ASTM D3559 Cross cut Test (95℃x 5min) |
|
Optical properties | Tt(%) | 91.56 | 91.74 | 91.83 | 91.49 | ASTMD 1003 |
Haze(%) | 0.8 | 0.27 | 0.37 | 0.07 | ||
Contact angle | Water(˚) | 90.2 | 105.1 | 89.3 | 104.3 | ASTM D5946 |
Pencil hardness | 7H | 4H | H | 2H | ASTM D3363 (750g) | |
Steel wool test | No defect | No defect | No defect | No defect | Steel wool #0000 2kg/4㎠/10 times |
|
2~5 scratches | 5~10 scratches | several scratches | No defect | Steel wool #0000 2kg/4㎠/1000 times |
||
Many defect | Many defect | Many defect | No defect | Steel wool #0000 4kg/4㎠/1000 times |
(Scroll sideways to see more.)
-
-
GSUIT Advantages
GSUIT has been getting credit for the highest quality and meets market requirements and standards. In along the way to its outstanding performance, GSUIT has been not just going through various tests, but applied knowledge accumulated over a long period of extensive research and development.
Long-term durability
- Superior stain resistance & Anti – permeation
- Discoloration
Easy installation
- Super stretched high elongation
- Outstanding adhesion
- Easy to remove without residue
Perfect gloss & clarity
Super hydrophobic & easy to clean
Excellent self healing
